Smile Pull Ring Handle

Smile Pull Ring Handle
Round Cup Pull And Turn Handle

Luter Design Smile pull-ring handle.combines simple elements to produce a stunning example of fit and finish. The flush cup is delicately bordered with the flats are available in high polish or various textures.Pulls with a rotating center are available for privacy deadbolt applications.

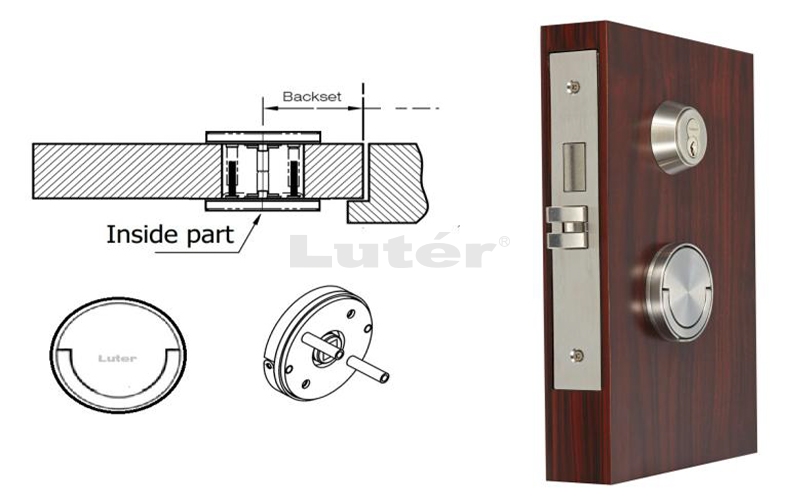

A series of low-profile, surface-mounted, drop-ring pulls to operate mortise locks generally from theinside of the door. Typical applications are handball courts, research facilities, adjoining rooms, etc. Ring handle is securely attached to half-spindles. Multiple spindle sizes and orientations enable matingto most mortise locks.

Product Features

• The handle is 63mm in diameter with a 13mm projection from the face of the door, andfeatures a satin brushed stainless steel finish.
• Spindle can be installed on the square. Easily changed in the field.
• All styles are cast in Stainless steel 304 and plated to all standard architectural finishes.
• Inquire about other materials.
• Can be adapted to most mortise locks and latches with split spindle operation.
• Non-handed – bolts to door with surface fasteners.
• Can be custom-made, back-to-back mounted.
• Dummy units are available where no latches are used.

Available Finishes

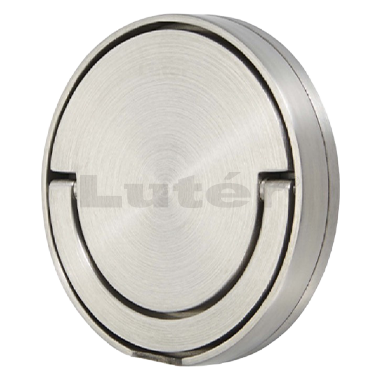

Satin stainless steel (US32D)

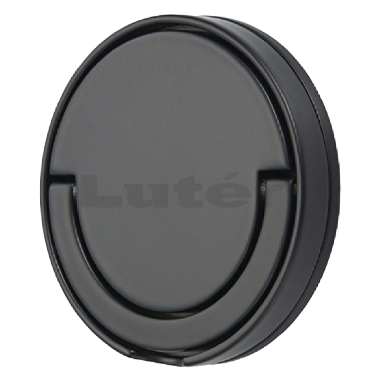

US19

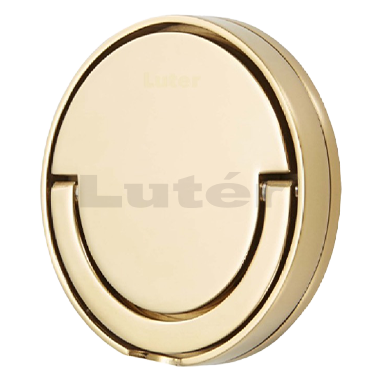

PVD coated (US3)

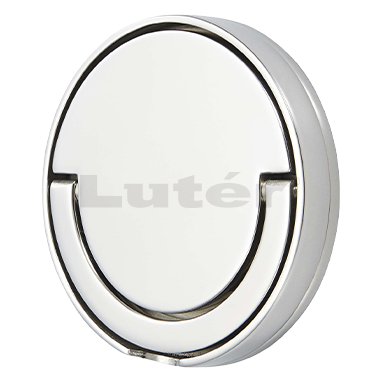

Public stainless steel (US32)

Applications

• Hospitality
• Multifamily & Mixed-Use
• Office Buildings

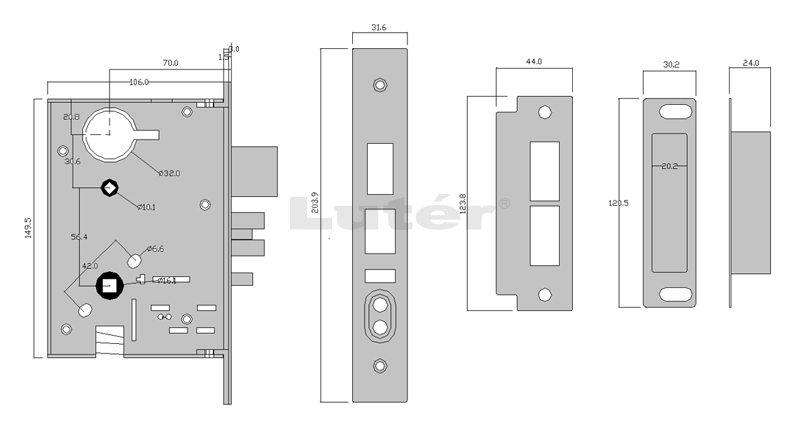

Luter Mg800 (87) K/K Mortise Lock

Function

Model	Outside	Sketch	Inside	Operation	Applications
MG871-1 MG872-1	Cylinder		Cylinder	Latchbolt can be retracted byknob from either side. Deadbolt can be operated bykey from either side. Can be locked or unlockedefrom outside using key tooperate deadbolt and latchbolt.
	Pull-ringhandle		Pull-ringhandle
	Cylinder		Thumb-turn	Latchbolt can be retracted byknob from either side. Deadbolt can be operated bykey from outside and thumb-turn inside. Can be locked orunlockede from outside usingkey to operate deadbolt andlatchbolt.
	Pull-ringhandle		Pull-ringhandle
	Cylinder		Thumb-turn	Latchbolt can be retracted byknob from either side. Deadbolt can be operated bykey from outside and thumb-turn inside. Can be locked orunlockede from outside usingkey to operate deadbolt andlatchbolt.
	Fixed knobor Pull-ringhandle		Plain knob orPull-ringhandle
	Cylinder		Thumb-turn	Latchbolt can be retracted byknob from either side. Deadbolt can be operated bykey from outside and thumb-turn inside.
	Pull-ringhandle		Pull-ringhandle
	Cylinder		None	Latchbolt can be retracted byknob from either side. Deadbolt can be operated bykey from outside. Cannot belocked or unlocked frominside.
	Pull-ringhandle		Pull-ringhandle
	None		Thumb-turn	Locked or unlocked frominside with thumb-turn. Cannot be locked or unlockedfrom outside.
	Fixed knobor Pull-ringhandle		Fixed knobor Pull-ringhandle
	Cylinder		Cylinder	Latchbolt can be retracted byknob from either side. Deadbolt can be operated bykey from either side. Can belocked or unlockede fromoutside using key to operatedeadbolt and latchbolt.
	Pull-ringhandle		Pull-ringhandle
	Cylinder		Thumb-turn	Latchbolt can be retracted byknob from either side. Deadbolt can be operated bykey from outside and thumb-turn inside. Can be locked orunlockede from outside usingkey to operate deadbolt andlatchbolt.
	Pull-ringhandle		Pull-ringhandle
	Cylinder		None	Latchbolt can be retracted byknob from either side. Deadbolt can be operated bykey from outside.Can belocked or unlockede fromoutside using key to operatedeadbolt and latchbolt. Cannotbe locked or unlocked frominside.
	Pull-ringhandle		Pull-ringhandle
MG872-	None		None	Latchbolt can be retracted byknob from either side.
	Pull-ringhandle		Pull-ringhandle
MG872-	Cylinder		Cylinder	Can be locked or unlockedefrom outside using key tooperate deadbolt
	Pull-ringhandle		Pull-ringhandle
				The outside knob is alwaysfixed, and the doorlocksautomatically when closed. Turning the inside thumbturnprojects both the deadbolt.	Hotel room
