Cylinder & Interchangeable Core: The Ultimate Key Management System for Large Buildings

Most people don't think about what happens when a key goes missing in a large building. With a traditional cylinder, the answer is costly: call a locksmith, disassemble the lock, and wait. When a security incident hits, rekeying building-wide can take days, leaving doors vulnerable in the meantime.

IC Core (Interchangeable Core) was designed for exactly this. The core is removed with a single control key—no tools, no locksmith, and zero downtime. Any door can be rekeyed in seconds by your own staff.

Luter's SFIC and LFIC cores are available in 6 and 7-pin versions, supporting up to 10,000,000 distinct key combinations per keyway. They are highly compatible with rim cylinders, knob locks, mortise locks, padlocks, cabinet locks, and more. 100% Made in Taiwan, built for your most demanding commercial projects.

How Does an IC Core Work? Understanding the Control Key

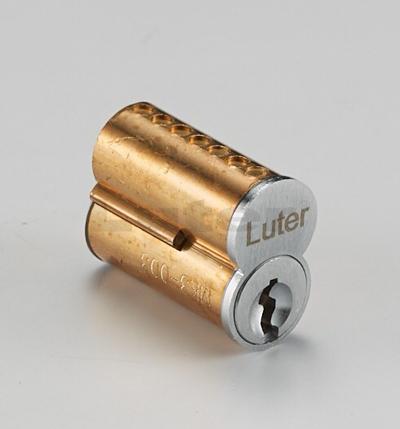

An IC core (Interchangeable Core) is a figure-8 shaped lock cylinder that unlocks when the correct key aligns its internal pins at the shear line. It can be removed and replaced in seconds using a specialized Control Key, with no tools or locksmith required.
To rekey, simply insert the control key, pull out the old core, and snap in a new one.

Top Applications: Why Modern Facilities are Upgrading to IC Cores

• Hotels & Hospitality: Swap cores instantly when staff leave or security is compromised.
• Schools & Universities: Easily rekey all classrooms at the end of each semester or school year.
• Office Buildings & Co-working Spaces: Instantly update access permissions whenever tenants change, all without disassembling the locksets.

Frequently Asked Questions About Interchangeable Cores

What is an IC Core?
An Interchangeable Core (IC Core), including SFIC (Small Format Interchangeable Core) and LFIC (Large Format Interchangeable Core), is a removable lock cylinder that can be replaced using only a control key, with no tools or disassembly required. It is widely used in commercial or institutional buildings across the United States for efficient rekeying.

What is the difference between an IC Core and a standard cylinder?
Standard cylinders require a locksmith, specialized tools, and full lock disassembly to rekey, which is a costly and time-consuming process. IC Core eliminates this entirely. Facility managers can replace the core in seconds using a control key, without removing the lockset or interrupting daily operations.

• SFIC (Small Format) is smaller and fits most commercial locksets, including cylindrical locks, mortise locks, exit devices, and deadbolts, making it the most widely used format in the U.S.
• LFIC (Large Format) is larger and requires specific brand-compatible locksets, making it less flexible. Both use a control key for quick core replacement.

Can I use my existing keys with an IC Core?
IC Core uses its own specific key system, so your existing keys won't work directly. However, a locksmith or supplier can set up the new IC Core key system to fit seamlessly into your facility's master key plan.

Is an IC Core system more expensive than a regular lock cylinder?
The upfront cost of IC Core is higher than a standard cylinder. However, the long-term savings on locksmith fees, hardware replacement, and minimized downtime make it significantly more cost-effective for medium to large facilities.

Is this system complicated to install?
The core itself drops into any IC-ready lockset without tools in seconds. The initial setup requires choosing the right format (SFIC/LFIC) and keyway for your building, which your supplier or locksmith can easily help you plan.

Can the control key open doors like a regular operating key?
No, the control key is strictly used to remove and insert the IC Core, not to operate the lock mechanism to open the door. For daily access, a separate operating key is used. The control key is kept strictly with facility management to ensure only authorized personnel can swap cores.

Cost-Benefit Analysis: Traditional Cylinder vs. IC Core

Conclusion: Make the Smarter Long-Term Investment for Your Security

For any facility managing multiple doors, IC Core is not just a hardware upgrade—it's an operational advantage. Faster rekeying, lower labor costs, and immediate response to security incidents make IC Core the smarter long-term investment over traditional cylinders. Whether you manage a school, hospital, hotel, or office complex, Luter's IC Core gives your team full key control without the cost and delays of conventional rekeying.

Ready to upgrade your facility's key management system? Contact us today, get a custom quote, or speak with our technical team about the right IC Core solution for your project.
