ANSI / BHMA A156.13 & UL Listed M8A0 Mortise Deadbolt
Operational and Security Lock, ANSI/BHMA A156.13 Grade 1 & UL Listed 3-hour fire rating for all functions.
Heavy duty for commercial, industrial, institutional uses.
Non-handed.
Self-adjusting case for beveled doors.
Installation in accordance with existing codes only.
Heavy duty for commercial, industrial, institutional uses.
Non-handed.
Self-adjusting case for beveled doors.
Installation in accordance with existing codes only.
| Face plate: | SUS304, Satin Stainless steel, 203mm(L) x 32mm(W) |
| Backset: | 70mm(2-3/4") |
| Deadbolt: | 1" throw Stainless steel deadbolt with a built in hardened steel pin |
| Thumb turn material: | Stainless steel 304 |
| Door Thickness: | 44mm (1-3/4") standard. Optional door thickness available. |
| Handing: | Non-handed |
| Cylinder: | Mortise, Interchangeable Core |
| Keyway: | Schlage C, Schlage E, Yale, BEST, L6 (65M/006) |
| Finish: | US32D or other request. |

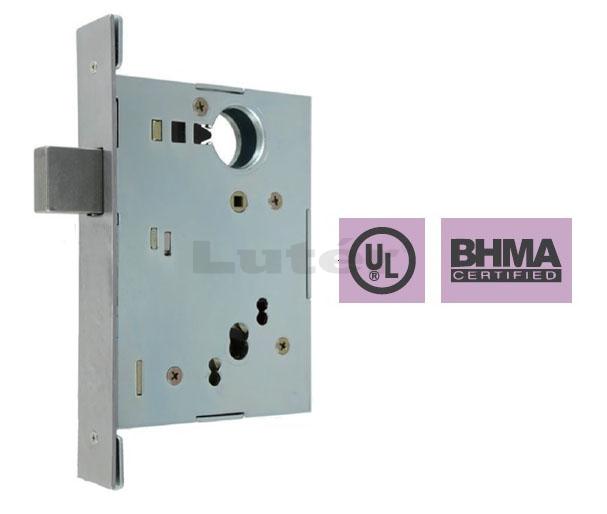

M8A0 mortise deadbolt
