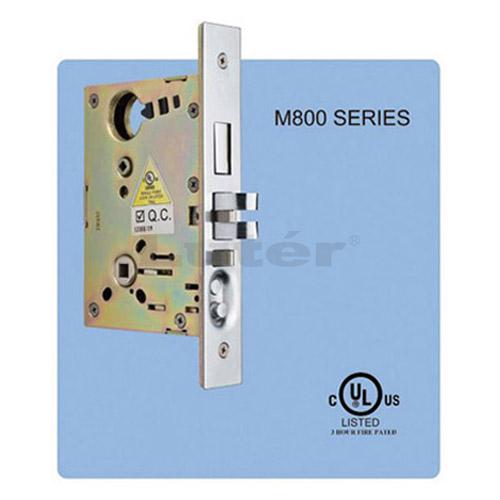

M800 Mortise Door Lock - ANSI/BHMA A156.3 – High Security Locks
Luter’s Mortise Lockset is designed to meet the Grade 1, ANSI/BHMA A 153.13. It is suitable for high-traffic used doors in government buildings, Institutional, Hotels, Hospitals and commercial buildings where security is of the greatest concern.
| Certification: | ANSI/BHMA A156.13 Series, Grade 1 and security UL/ULC Listed for 3-Hour Fire Rating. |
| Door Range: | 1-3/4"(44mm)-standard. 1-1/2"(38mm) to 3"(76mm) |
| Backset: | 2-3/4"(70mm)only. |
| Lock Case: | All bolts are made of stainless steel SUS304, most working parts inside the case are made of high strength steel alloy. 5.82"(147.7mm) x 4.15"(105.4mm) x 0.85"(21.6mm). |
| Spacing: | Knob/Lever Handle center to Cylinder center:3.615"(91.8mm). |
| Front Plate: | Stainless Steel US304/316 or Brass. 8"(203mm) x 1-1/4"(32mm) x 3/32"(2mm) standard. 8"(203mm) x 1-1/16"(27mm) x 3/32"(2mm) optional. |
| Deadbolt: | 1"(25mm) Throw, Stainless steel |
| Latchbolt: | 3/4"(19mm) Throw, 2-piece mechanical with anti-friction, all Stainless steel. |
| Auxiliary Latch: | 0.52"(13.2mm), Non-handed. |
| Strike: | 4-7/8"(123.6mm) x 1-1/4(31.5mm), Non-handed, Stainless steel. |
