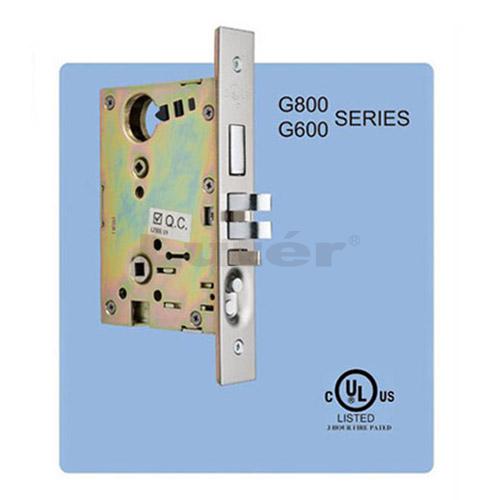

G800/600 Mortise Sash Lock - ANSI/BHMA A156.3

Certification:	UL/ULC Listed for 3-Hour Fire Rating.
Door Range:	1-3/4"(44mm)-standard. 1-1/2"(38mm) to 3"(76mm)
Backset:	2-3/4"(70mm), 2-1/2"(64mm)
Lock Case:	All bolts are made of staninless steel SUS304, most working parts inside the case are made of high strength steel alloy. 5.82"(147.7mm) x 4.15"(105.4mm) x 0.85"(21.6mm).
Spacing:	Knob/Lever Handle center to Cylinder center:3.615"(91.8mm).
Front Plate:	Stainless Steel SUS304/316 or Brass. 8"(203mm) x 1-1/4"(32mm) x 3/32"(2mm) standard. 8"(203mm) x 1-1/16"(27mm) x 3/32"(2mm) optional.
Deadbolt:	1"(25mm) Throw, Stainless steel
Latchbolt:	3/4"(19mm) Throw, 2-piece mechanical with anti-friction, all Stainless steel.
Auxiliary Latch:	0.52"(13.2mm), Non-handed.
Strike:	4-7/8"(123.6mm) x 1-1/4(31.5mm), Non-handed, Stainless steel.
