Products
ANSI / BHMA A156.2 & UL listed FL Series

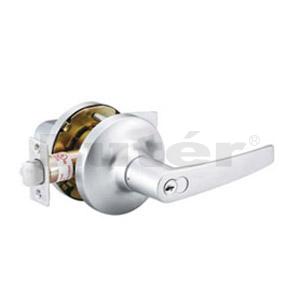

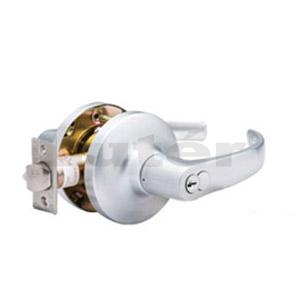

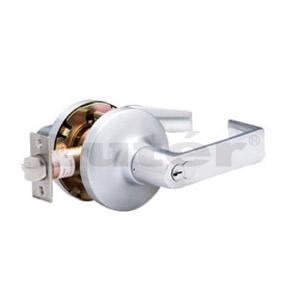

ANSI/BHMA Grade 1 Commercial Heavy Duty Cylindrical Locksets - FL series
ANSI/BHMA A156.2 Grade 1 certified
UL 3 hours fire rating certified. UL File NO. R25704.
| Exposed Trim: | Stainless steel or brass. |
| Door Thickness: | 35mm to 51mm (1-3/8" to 2") standard. |
| Backset: | Available in 60mm (2-3/8") or 70mm (2-3/4") |
| Strike: | 9109. ASA strike 31.4mm x 123.5mm x 2.4mm (1-1/4" x 4-7/8" x 3/32") standard. 9106. T strikes 28.2mm x 69.5mm x 2.0mm (1-1/8" x 2-3/4" x 5/64") optional. |
| Faceplate: | 28.4mm x 57.0mm (1-1/8" x 2-1/4") square corner. 25.4mm x 57.0mm (1" x 2-1/4") faceplate also available. |
| Latch bolt: | Stainless steel powder metallurgy latch bolt with 12.7mm (1/2") throw. |
| Cylinder: | 6 pin solid brass cylinder. Schlage "C" Keyway standard. Small Format Interchangeable Core cylinder also available. (6 or 7 pin cylinder, Best "F" keyway) |
| Door Handing: | Non-handed. |
| Finish: | US3, US10B, US26, US26D. Other finishes are available upon request. |
FL, FA Series
