Products

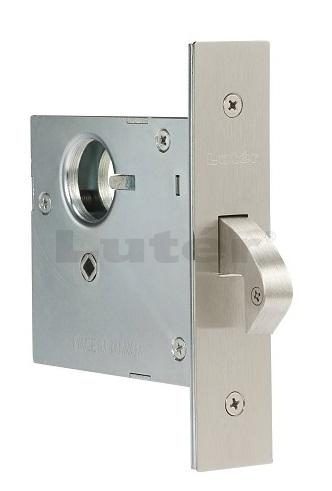

D810-DH Mortise Hook Lock
| Application: | Material: | Finishes: |
|
Stainless Steel 304 | 32D-(630) Satin Stainless Steel 32 - (629) Bright Stainless Steel |
Specification:
| Standard Door Thickness | 1-3/4’’(45 mm) Thick door kits available |
| Backset | 2-3/4’’(70 mm) |
| Thumb-turn Spindle | 5 x 5 mm square |
| Bolt | 1’’(25.4 mm) |
| Lever Spindle | 8 x 8 mm square |
| Case Size | |
| Handling | Specify handling for privacy function |
| Lockcase | Field reversible without disassembly |
| Cylinder | Schlage C Key-way 6 pins mortise cylinder with 2 keys |
D810-DH-Dimension

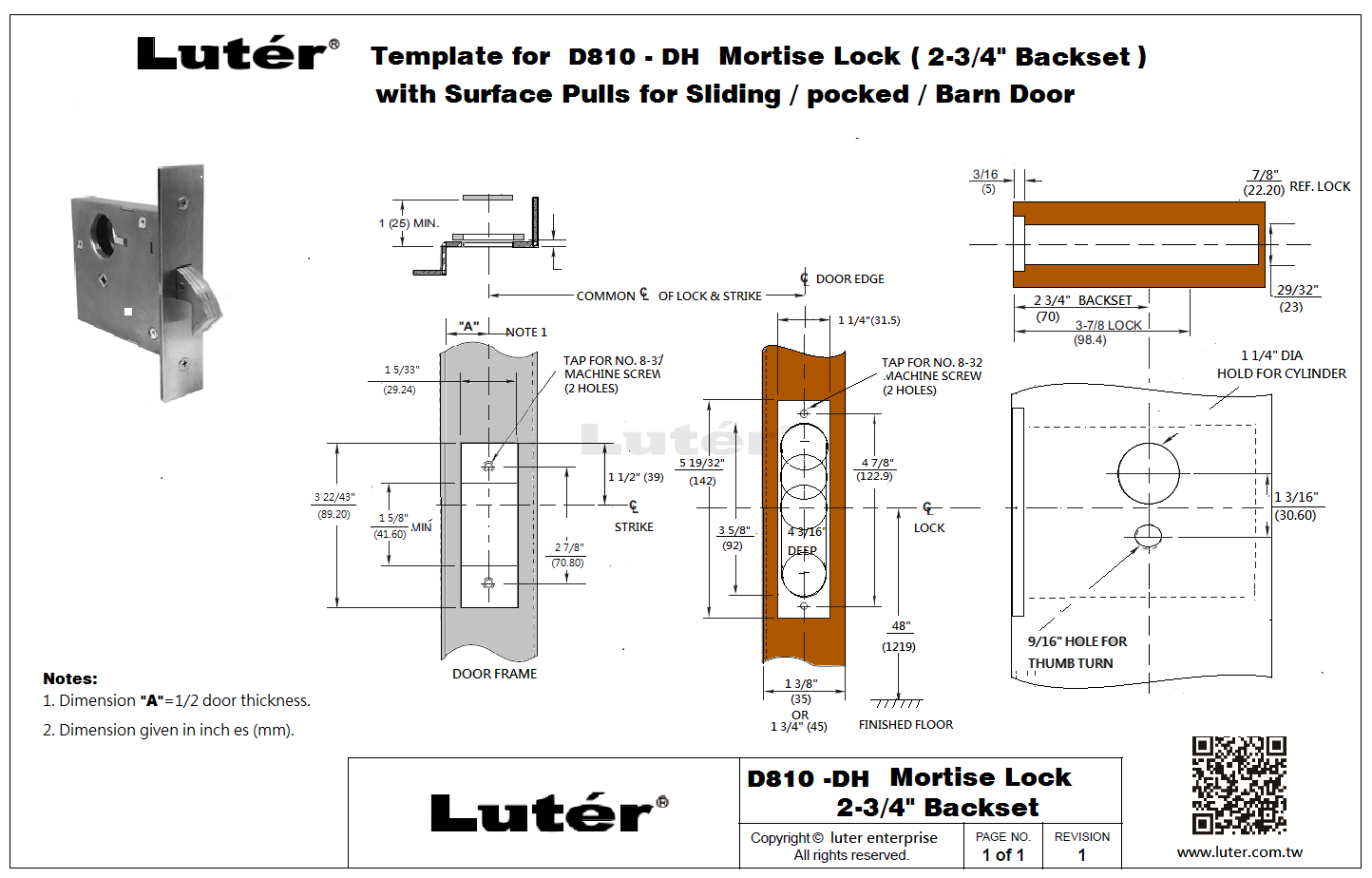

D810-DH Template For Wooden Door

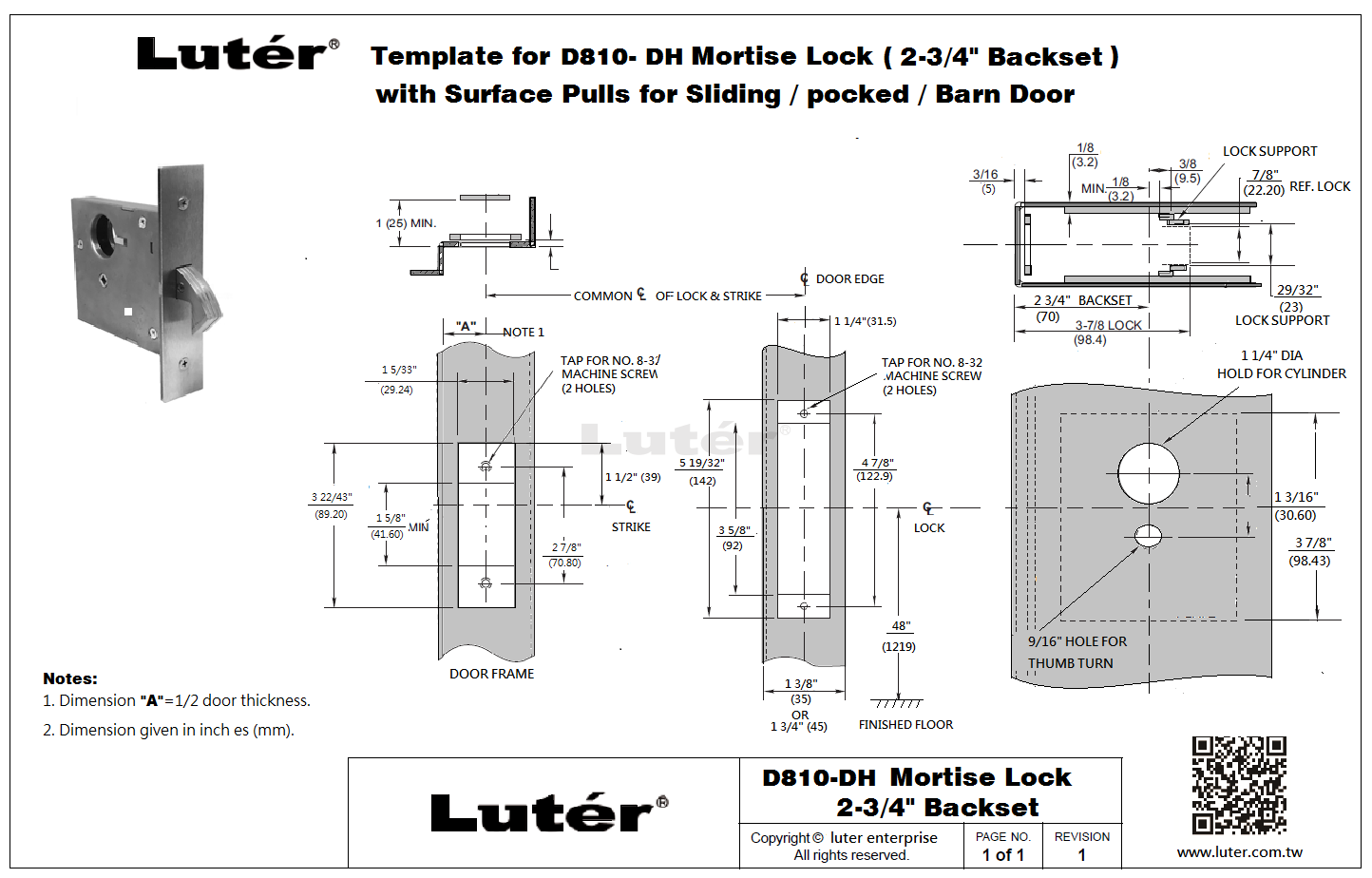

D810-DH Template For Metal Door
