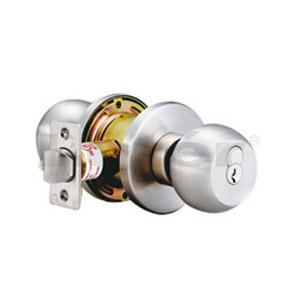

FAR3000

Name: FAR3000
Brand: LUTER ENTERPRISE CO., LTD.
SKU: null

Home > Products > Cylindrical Lever / Knob Series > ANSI / BHMA A156.2 & UL listed FA Series > FAR3000

FAR3000 - ANSI/BHMA A156.2 Grade 1 Certified, UL 3 Hours Fire Rating Certified

Inquiry

Product Description

Model No.	Function&Operation
FAR300xx	0(F109): Entrance Lock (by knob/lever from either side. Except when outside knob/lever is locked by the push/turn button inside.)
	1(F82): Entrance/Office Lock (by lever from either side. Except when outside lever is locked by push button or other locking device on inside.)
	2(F90): Corridor Lock (by lever from either side. Except when outside lever is locked by key in outside lever or by push button or other locking device on inside.)
	11(F91): Store Door Lock (by knob/lever from either side. Except when both knob/lever are locked by turning key from either side.)
	12(F84): Classroom Lock (by knob/lever from either side. Except when outside knob/lever is locked from outside by key.)
	14(F80): Double Classroom (Communicating Lock) (by knob/lever from either side. Turning key in either knob/lever locks or unlocks its own knob/lever independently.)
	15(110): Intruder Classroom Lock (by knob/lever from either side.)
	30(F76): Privacy Lock (by knob/lever from either side.)
	51(F113): Communicating (Key Type) Lock (by key from inside only. Blank plate on other side.)
	52(F111): Communicating (Non-Key Type) Lock (by knob/lever from inside only. Blank plate on other side.)
	61(F87): Double Classroom (Communcating Lock) (by key in knobs/levers, from either side.)
	62(F86): Intruder Classroom Lock (by key in outside knob/lever. Outside knob/lever is always inoperable.)
	78: Single Dummy Trim (Used for door pull or as matching inactive trim. Knob/lever and rose attached by two wood screws.)
	82(F75): Passage Set (by knob/lever, from either side.)
	90(F77): Patio Lock (by knob/lever, from either side.)
