FC-ALM8500

Home > Products > Exit Device > Alarm Exit Hardware > FC-ALM8500

Inquiry Prev Next

Product Description
Product Specification
Download

Model No.	Application	Finish
FC-ALM8500-36"	For 36" wide doors.	- Powder coated: Aluminum, Bronze, Oxidized Satin Bronze Plated(US10B). - Plated: Polisheed brass or chrome. - Solid stainless steel: Polished or satin.
FC-ALM8500-48"	For 48" wide doors.	- Powder coated: Aluminum, Bronze, Oxidized Satin Bronze Plated(US10B). - Plated: Polisheed brass or chrome. - Solid stainless steel: Polished or satin.

Remarks

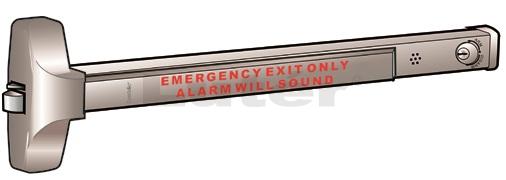

Alarming Kit with parts as shown below.
Dimensions:
￭ Alarm units has an internal horn. When the push rail is depressed, the horn sounds to provide an audible as means of signaling that the door has been opened and violated.
￭ The unit has changeable 2-minute alarm cutoff or manual reset. Preset at factory for 2-minute alarm cut off.
￭ Jumper cable is provided to switch to continuous alarm.
￭ The key switch to turn the alarm operates on one standard 9 volt transistor battery. When battery is weak the horn will emit an intermittent signal.
￭ Alarmed units are supplied with two switches. One switch controls the push rail nd the other switch controls the latchbolt for full proof security.
￭ Unit includes "emergency exit only. Alarm will sound" decal for application on door or unit.
