Products

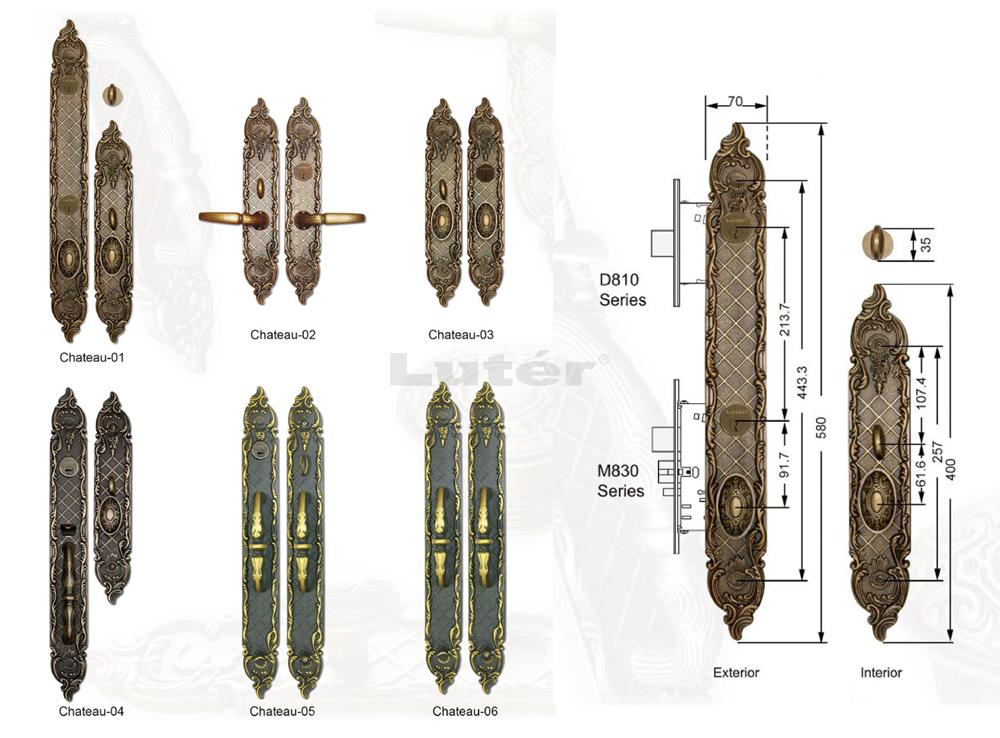

Chateau Sectional Handleset
M830 Series
| Certification: | ANSI/BHMA A156.13 Series, Grade 1 and security UL/ULC Listed for 3-hour Rating |
| Backset: | 2-3/4"(70mm) |
| Lock case: | All bolts are made of stainless steel SUS304, most working parts inside the case are made of high strength steel alloy. 5.82''(147.7mm)*4.15''(105.4mm)*0.85''(21.6mm) |
| Front plate: | Stainless Steel SUS304/316 or Brass. 8''(203mm)*1-1/4''(32mm)*3/32''(2mm)standard. 8''(203mm)*1-1/16''(27mm)*3/32''(2mm)optional. |
| D810 Series UL Listing: |
File R26095 |
| Backset: | 70mm |
| Mortise Cylinder: | Brass Cylinder 6-pin |
| Door Thickness: | 1-3/4''(44.5mm) |
E-CatalogRelated Products
