Manual Flush Bolt

● UL Listing: UL Listed – 3 hour Fire Rating.

● Material: Brass

● Finish: Standard finish US26D (Satin Chrome Plated): no MOQ requirement. Other finishes (US3, US15, US5, US26, US10B) are available upon request, however, require MOQ 2,000 sets for each sku.

● Customer logo is accepted, however, OEM order requires MOQ 2,000 sets for each sku.

● Features: Ease of installation, Automatic snaps-closed lever.

● Non-handed.

● Description: a. Each set includes 1 Steel Rod, 1 Steel Rod Tip, Steel Strikes, mounting screws. b. 2 sets packed in one box; 50 boxes packed in one carton. (Gross weight: 17kg per carton)

● Sizes:

12” Standard Rod length measured from the center of the bolt body to the bolt tip. (Other rod lengths are available upon request.)

● Size of face: 6-3/4” (171mm) x 1” (25mm).

● Rod length: 10.5” (265mm) as standard.

● Mounting hole location: 6-1/4” (159mm).

● Bolt throw is 3/4” (19mm) with a 7/8” vertical adjustment.

● Bolt backset is 3/4” (19mm).

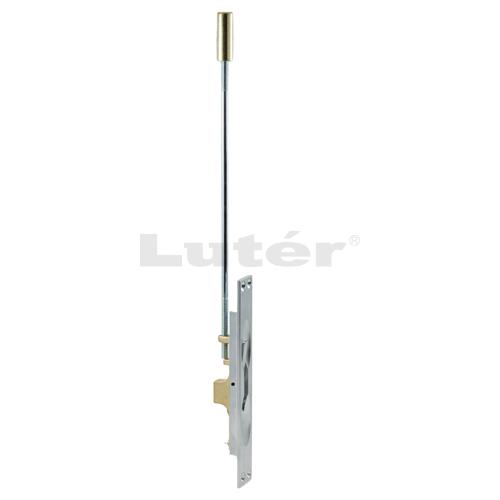

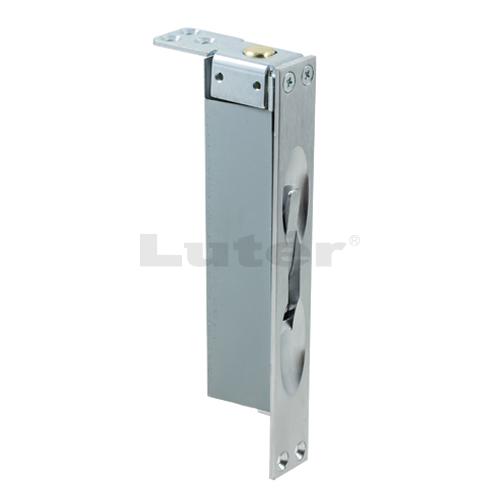

Luter Manual Flush Bolt (DDB01)
